메인 > 제품소개 > 기계사업부 > UNIVERSAL BENDER

ㆍ재질기준 : 항목점 2,500㎏/㎠, 안장강도 4,500㎏/㎠ ㆍWiper Die : Option

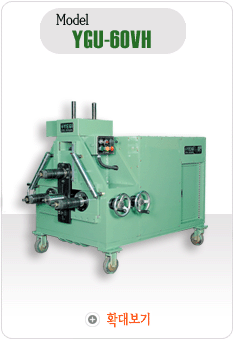

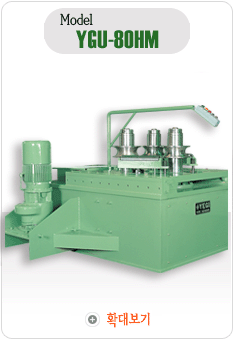

항목＼Model YGU-60VH YGU-80HM YGU-120HM
조작방식
Operation Method		 Remote Control Push Button
전동기
Electric Motor		 Top Roller Movement 0.75 ㎾ 2.2 ㎾ 3.7 ㎾
Top Roller Driving 3.7 ㎾ 3.7 ㎾ 5.5 ㎾
Bottom Roller Driving 3.7 ㎾ 5.5 ㎾
벤딩가공속도(m/min)
Bending Speed		 10 8 7
로라크기 Top Roller 190 280 400
Bottom Roller 160 250 380
기계크기(W×H×L)
Dimensions		 1800 ×1400 × 1400 2400 ×1800 × 1250 2150 ×3200 × 1600
기계중량(㎏)
Weight		 1800 3800 6700

항목＼Model YGU-VH-3DT YGU-80HM YGU-120HM
ANGLE 外曲
 300 × 50 × 6 Ø500
20 × 20 × 3 Ø350		 75 × 75 × 12 Ø800
30 × 30 × 3 Ø400		 130 × 130 × 15Ø1500
50 × 50 × 6 Ø800
ANGLE 外曲
 40 × 40 × 5 Ø550
20 × 20 × 3 Ø400		 65 × 65 × 8 Ø750
30 × 30 × 3 Ø450		 130 × 130 × 15Ø2000
50 × 50 × 6 Ø1000
平 鋼 BENDING

 50 × 6 Ø500
25 × 3 Ø400		 75 × 16 Ø800
50 × 6 Ø550		 150 × 32 Ø2500
65 × 12Ø1200
PIPE BENDING
40A(48.6)Ø500
20A(27.2)Ø450		 50A(60.5)Ø700
15A(27.2)Ø450		 125A(139.8)Ø2000
40A(48.6)Ø1000
丸綱 BENDING
Ø32 Ø400
Ø12 Ø300		 Ø40Ø700
Ø16Ø450		 Ø75Ø1400
Ø20Ø800
角 綱 BENDING
28 × 28Ø400
12 × 12Ø300		 40 × 40 Ø850
16 × 16Ø500		 70 × 70 Ø1400
20 × 20 Ø800
ㄷ形綱外曲

 - 75 × 40 Ø850 250 × 90 Ø1800
75 × 40 Ø1000
ㄷ形綱外曲
 - 75 × 40 Ø960 250 × 90 Ø2000
75 × 40 Ø1200
I 形綱 BENDING
- - 150 × 75 Ø2000
100 × 75 Ø1500
H 形綱 BENDING
    200 × 100 Ø1800
75 × 75 Ø1000
